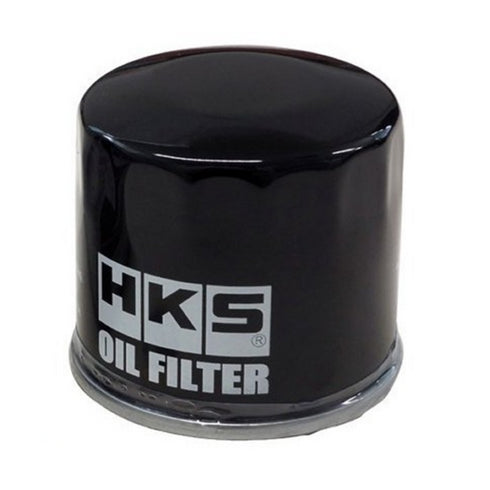

HKS Hybrid Sports Oil Filter
Suzuki Swift Sport M16A
ZC31S / ZC32S

HKS Hybrid Sports Oil Filter UNF3/4-16

A new concept oil filter which improves oil pressure drop and flow properties by approximately 30% compared to current sports oil filters. Large diameter of "Super Intake Hole" and newly developed low resistance hybrid filter allow low pressure loss. Engine response is alos improved by reducing the stress on the engine.
Most sports oil filters are prerequisite for using the high viscosity oil and therefore filter paper strength is prioritized whilst sacrificing absolute pressure loss properties. HKS Hybrid Sports Oil Filter has readdressed filter strength and overall structure to provide the oil flow that the engine requires and pursue HKS' ideals in what is required from a sports oil filter.

Composition
In the interest of general versatility, unit size has been standardized at φ68x65mm. Fitment bolt sizes are M20-1. 5P and 3/4-16 UNF. Filtration performance JIS standard is 25μ whereas HKS is 20μ making the filter compatible with most standard engine requirements.

Filter Life
Under normal usage, it is recommended that the filter is changed in every 10,000km or 6months. For Sports driving, the recommended distance is approximately 1/3 - 1/2 of the previously mentioned figure (as the engine revolutions are several times that of normal driving). However, to maintain optimum low pressure loss properties, it is recommended to change the filter every 3000km when an oil change is performed.

Compatibility Condition: For φ68×H65
Please confirm that the filter unit size of φ68×H65 and screw size.
Oil filter is compatible with vehicles or oil attachments where the oil filter seal internal diameter is less than φ55.5
For φ80×H70
Please confirm that the filter unit size of φ80 x H70 and screw size of (M20-P1.5 or UNF3/4-16).
Oil filter is compatible with vehicles or oil attachments where the oil filter seal internal diameter is less than φ68.5.

Installation to a vehicle which does not meet the above conditions may result in engine damage due to leakage of oil. Please contact us with any concerns.

Performance
HKS Hybrid Oil Filter's low pressure loss properties means that even standard specification engines can benefit from reduced engine resistance and improves engine response.

Suzuki Alto HA24S K6A 2004-2009
Suzuki ALTO LAPIN HE21S K6A 2002-2008
Suzuki ALTO LAPIN HE22S K6A 2008-
Suzuki Cappuccino EA11R F6A(TURBO) 1991-1995
Suzuki Cappuccino EA21R K6A(TURBO 1995-1998
Suzuki Jimny JB23W K6A(TURBO) 1998-
Suzuki Kei HN12S F6A(TURBO) 1998-2001
Suzuki Kei HN22S K6A(TURBO) 1998-2009
Suzuki MR Wagon MF21S K6A 2001-2005
Suzuki MR Wagon MF22S K6A 2006-
Suzuki Splash XB32S K12B 2008--
Suzuki Swift ZC21S M15A 2004-2007
Suzuki Swift ZD72S K12B 2010-
Suzuki Swift Sport ZC31S M16A 2005-
Suzuki Swift Sport ZC32S M16A 2011-
Suzuki SX4 YA11S M15A 2006-
Suzuki SX4 YA41S J20A 2006-
Suzuki Wagon R CV21S F6A(TURBO) 1995-1998
Suzuki Wagon R CV51S K6A(TURBO) 1997-1998
Suzuki Wagon R MC11S F6A(TURBO) 1998-2001
Suzuki Wagon R MC21S K6A(TURBO) 1998-2003
Suzuki Wagon R MH21S K6A(TURBO) 2003-2007
Suzuki Wagon R MH22S K6A(TURBO) 2005-2008
Suzuki Wagon R MH23S K6A(TURBO) 2008-2012
Suzuki Wagon R RH34S R06A(TURBO) 2012-
